- Sharp Edge Tester UL 1439

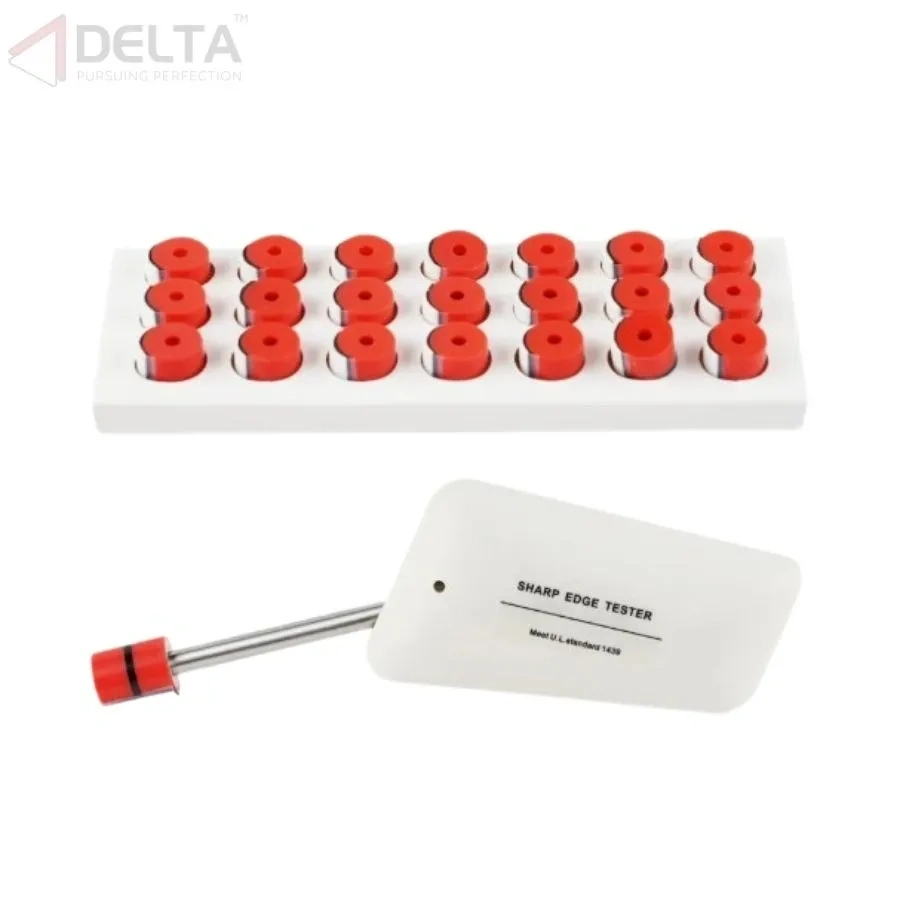

Sharp Edge Tester UL 1439
$0(Incl, of all taxes)
Product Code: DE0006
Material | Metal |
Colour | White & Red |
Dimension | 184x35mm |
Weight | <1Kg |
Additional information | HOW TO OPERATE? After placing the test cap on the edge to be tested, immediately use 0.68KG force to move 2 inches along the edge, and then return to the starting point for a total distance of 4 inches.After the test, check the test cap. If the two outermost layers (simulated skin) on the test cap are scratched, it indicates that the test edge is a sharp edge. FORCE VALUE ADJUSTMENT - Loosen the screw. Press the test head on the electronic scale and apply pressure. If the force value is too small, please elongate the test rod; If the force value is too large, shorten the test rod; Tighten the screws when done. |
Brand | Delta Imports |
Location | Made in India |
